Open-Loop Guide

How to reason about open-loop timing in operator language.

Open-loop behavior is easiest to understand if you separate three questions:

  1. When does the run become allowed to start?
  2. How long is the total run window?
  3. Within that run window, what does each stimulation ON/OFF cycle look like?

Those map roughly to:

Critical Rule

  • the open-loop start schedule begins after launch confirmation

Train Timing

If train.off_seconds = 0:

  • stimulation starts once
  • stimulation stays on for the run window

If train.off_seconds > 0, the runtime repeats:

  1. start stimulation
  2. stay ON for train.on_seconds
  3. stop stimulation
  4. stay OFF for train.off_seconds
  5. repeat until the run window ends

Worked Example

Suppose the config is:

  • run_for_minutes = 1
  • train.on_seconds = 5
  • train.off_seconds = 10
  • pulse.period_ms = 1000
  • pulse.time_on_ms = 10

Operator interpretation:

  • the total run window is 60 seconds
  • each ON epoch lasts 5 seconds
  • each OFF gap lasts 10 seconds
  • inside each ON epoch, the fast pulse waveform is 1 Hz with 10 ms ON per pulse

Expected train timeline:

  • t=0s to t=5s: ON
  • t=5s to t=15s: OFF
  • t=15s to t=20s: ON
  • t=20s to t=30s: OFF
  • t=30s to t=35s: ON
  • t=35s to t=45s: OFF
  • t=45s to t=50s: ON
  • t=50s to t=60s: OFF

That produces four ON epochs during the 60 second run window.

Runtime Examples

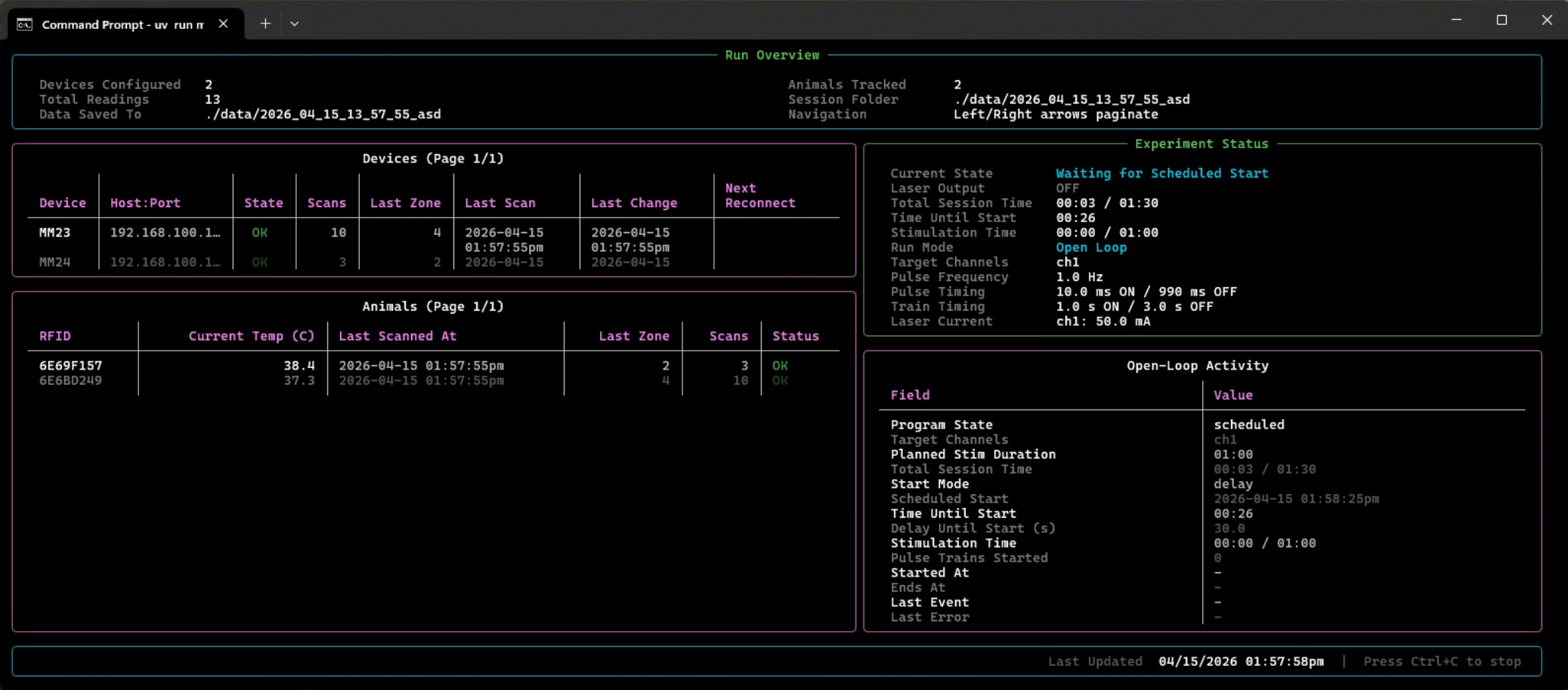

Waiting for the scheduled start:

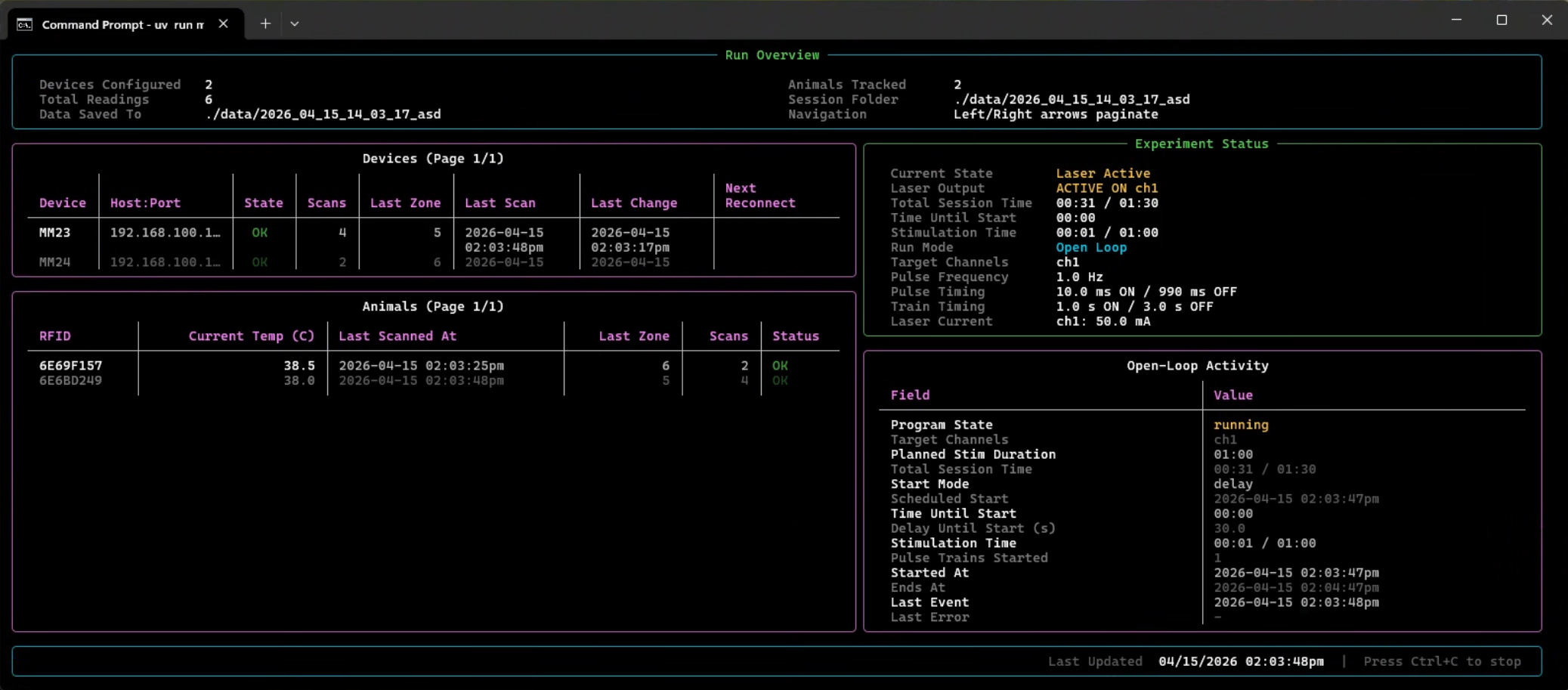

Active stimulation:
